Semi dynamic webpage template








Semi dynamic webpage template with Google sheets integration



INDEX



  1. Introduction


  2. Purpose Behind


  3. Proposed Work


  4. Experimental Results


  5. Conclusion


  6. References




Introduction


Our project aims at providing a semi-dynamic template of a fully fledged highly responsive webpage for small scale organizational usage. With improved security considerations and better organization this project integrates google sheets services as a database for a website. Google sheets being easy to deploy and use makes content updation easier and a lot more user friendly. Several other functionalities like Google scripting engine along with google forms can be very easily integrated with google sheets thus, can be used for real time and secure updation of website content. Furthermore, it separates developer and non-developer roles thus defining user privileges.


Several formatting and scripting languages like HTML, JQuery, PHP and CSS were used for complete frontend and backend development. Necessary security measures has been incorporated to provide introductory and necessary protection against various unwanted attacks like XSS.

Additionally, important measures were taken for making website responsive on various viewports, and platforms to provide best user experience.



Purpose Behind


There were two main objectives for our design:



  • Security Consideration


  • Separation of developer and non-developer parts





  1. Security Considerations:



Heavy websites are mostly build on packages like wordpress, drupal etc. These rely heavily on local  dynamic databases like MySQL, MongoDB etc. During a successful DDOS attack, large chunks of firewall logs gets collected in server, thus there’s no space left for dynamic services to store their data and they  usually terminate, causing website to fail.

Apart from this, using local database also makes a website prone to attacks like, SQL Injection, Privilege abuse, Database protocol vulnerabilities etc.


  2. Separation of developer and non-developer roles


Websites requires both developer roles, like maintaining, designing and debugging the site and non-developer role like content preparation and regular content updation.

Storing both the segments in a single file might lead to unwanted distribution of privileges, by mistake changes in the code etc.  This also increases website maintenance costs.



Proposed Work


Untitled Diagram(1).jpg

Proposed design

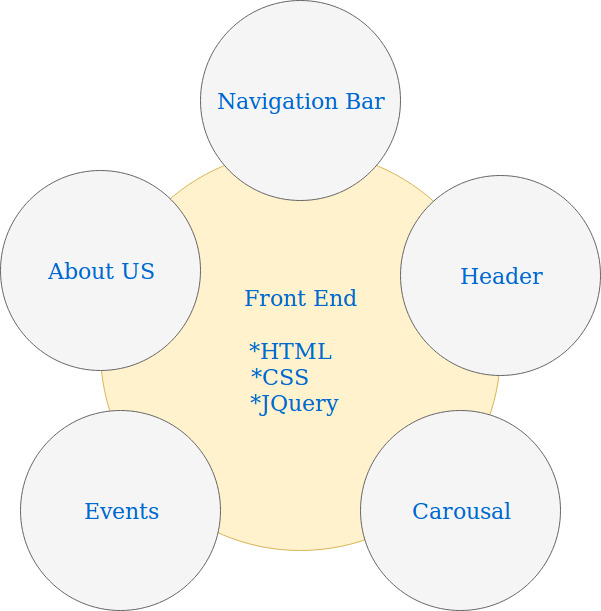

Front End Overview

Complete front end design can be divided into 5 different sectors,namely



  • NAVIGATIONAL BAR



    • used for linking different pages together with the main page.


    • Ensures easy navigation for users.




  • HEADER



    • Contains title of the page along with organization logo.


    • Contains About us link.





Untitled Diagram(2).jpg







  • CAROUSAL



    • For impressive display of work done by the organization.


    • Should be mobile compatible.






  • EVENTS



    • For display of recent events organized by the organization, along with their link and description.




  • ABOUT US



    • For team introduction, along with initial motto of the organization.





CORRESPONDING CODE:




<!DOCTYPE html>
<html>
   <head>
      <link rel="shortcut icon" type="image/x-icon" href="img/logo.png" />
      <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/css/bootstrap.min.css">
      <link rel="stylesheet" href="css/common.css">
      <link rel="stylesheet" href="css/device_specific.css">
      <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.2.1/jquery.min.js"></script>
      <script src="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/js/bootstrap.min.js"></script>
      <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
      <meta content="utf-8" http-equiv="encoding">
      <title>
         CEDT
     </title>
      <meta name="description" content="Official website of Center of Embedded Design and Technology">
      <meta name="viewport" content="width=device-width, initial-scale=1">
      <style type="text/css">
         h4{
         font-size: 1.3em;
         }
         h5{
         font-size: 1.2em;
         }
         body { padding-top: 55px; }
         .hidden {
         display: none;
         }
      </style>
   </head>
   <body style="background-color: ghostwhite;">
      <header role="banner" class="navbar navbar-fixed-top navbar-inverse">
         <div class="container">
            <div class="navbar-header">
               <button data-toggle="collapse-side" data-target=".side-collapse" data-target-2=".side-collapse-container" type="button" class="navbar-toggle pull-left"><span class="icon-bar"></span><span class="icon-bar"></span><span class="icon-bar"></span></button>
            </div>
            <div class="navbar-inverse side-collapse in">
               <nav role="navigation" class="navbar-collapse">
                  <ul class="nav navbar-nav">
                     <li><a href="#Wiki">Home</a></li>
                     <li><a href="#Wiki">Wiki</a></li>
                     <li><a href="#Events">Events</a></li>
                     <li><a href="#Events">Our Team</a></li>
                  </ul>
               </nav></div></div></header>
      <!-- /////////////////////////////////////////////////////////////Main page start ///////////////////////////////////////////////////-->
      <!-- Division 1-->
      <div style="background-image: url('img/stars.jpg');">
         <div class="container-fluid" style="background-color:#eceff1; margin-left: 0.5em;margin-right: 0.5em;height:11em;opacity:0.9;" >
            <div class="row">
               <!-- Division 1.1 LOGO-->
               <div id="div1-1" class="col-xs-1" style="padding: 0px;margin-right: 1em;">
                  <img class="img-responsive" src="img/logo.png" alt="logo" height=100 width=120 style="position: relative;left:7%;margin-top:1em;">
                  <div id="div1-1_link" style="text-align: center;margin-top:2em;margin-left: 0.5em;">
                     <div>
                        <h5><a class="nav-link" href="contactus.php" target="_blank">Contact us</a></h5>
                     </div>
                     <div>
                        <h5><a class="nav-link" href="#" target="_blank">About us</a></h5>
                     </div>
                  </div>
               </div>
               <!-- Division 1.2 HEADER-->
               <div id="div1-2" class="col-xs-9" style="text-align:center;">
                  <h1 style="position: relative ;margin-top: 1%;font-weight: bold;">Centre for Electronic Design and Technology</h1>
                  <h2 style="position: relative ;margin-top: 1%;">Block 4, Netaji Subash Institute of Technology</h2>
                  <h2 style="position: relative ;margin-top: 1%;margin-bottom: 0.5%;">Dwarka, New Delhi</h2>
               </div>
               <div id="div1-3" class="col-xs-1" >
                  <br>
                  <div>
                     <h4 class="centerify"><a class="nav-link" href="contactus.php" target="_blank">Contact Us</a></h4>
                  </div>
                  <div>
                     <h4 class="centerify"><a class="nav-link" href="#" target="_blank">About Us</a></h4>
                  </div>
               </div>
            </div>
         </div>
      </div>
      <!-- Carosal-->
      <div style="background-color: darkmagenta;padding-top: 1em;padding-bottom: 1em;margin-top: 0.5em;background-image: url('img/elec2.jpg');">
         <div class="container" style="opacity: 0.90;">
            <div id="myCarousel" class="carousel slide" data-ride="carousel">
               <!-- Wrapper for slides -->
               <div class="carousel-inner">
                  <div class="item active">
                     <img src="<?php echo $data[5][3];?>" height=400 width=760>
                     <div class="carousel-caption">
                        <h4><a href="#" style="color: rgb(255,255,255)"><strong><?php echo $data[5][1]; ?></strong><br><?php echo $data[5][2]; ?> </a></h4>
                     </div>
                  </div>
                  <!-- End Item -->
                  <div class="item">
                     <img src="<?php echo $data[6][3];?>">
                     <div class="carousel-caption">
                        <h4><a href="#" style="color: rgb(255,255,255)"><strong><?php echo $data[6][1]; ?></strong><br><?php echo $data[6][2]; ?></a></h4>
                     </div>
                  </div>
                  <!-- End Item -->
                  <div class="item">
                     <img src="<?php echo $data[7][3];?>">
                     <div class="carousel-caption">
                        <h4><a href="#" style="color: rgb(255,255,255)"><strong><?php echo $data[7][1]; ?></strong><br><?php echo $data[7][2]; ?></a></h4>
                     </div>
                  </div>
                  <!-- End Item -->
                  <div class="item">
                     <img src="<?php echo $data[8][3];?>">
                     <div class="carousel-caption">
                        <h4><a href="#" style="color: rgb(255,255,255)"><strong><?php echo $data[8][1]; ?></strong><br><?php echo $data[8][2]; ?></a></h4>
                     </div>
                  </div>
                  <!-- End Item -->
                  <div class="item">
                     <img src="<?php echo $data[9][3];?>">
                     <div class="carousel-caption">
                        <h4><a href="#" style="color: rgb(255,255,255)"><strong><?php echo $data[9][1]; ?></strong><br><?php echo $data[9][2]; ?></a></h4>
                     </div>
                  </div>
                  <!-- End Item -->
                  <div class="item">
                     <img src="<?php echo $data[10][3];?>">
                     <div class="carousel-caption">
                        <h4><a href="#" style="color: rgb(255,255,255)"><strong><?php echo $data[10][1]; ?></strong><br><?php echo $data[10][2]; ?></a></h4>
                     </div>
                  </div>
                  <!-- End Item -->
               </div>
               <!-- End Carousel Inner -->
               <ul class="list-group col-sm-4" style="padding-left: 1em;">
                  <li data-target="#myCarousel" data-slide-to="0" class="list-group-item active" style="background-color: silver;">
                     <h4><strong><?php echo $data[5][1]; ?></strong></h4>
                  </li>
                  <li data-target="#myCarousel" data-slide-to="1" class="list-group-item" style="background-color: silver;">
                     <h4><strong><?php echo $data[6][1]; ?></strong></h4>
                  </li>
                  <li data-target="#myCarousel" data-slide-to="2" class="list-group-item" style="background-color: silver;">
                     <h4><strong><?php echo $data[7][1]; ?></strong></h4>
                  </li>
                  <li data-target="#myCarousel" data-slide-to="3" class="list-group-item" style="background-color: silver;">
                     <h4><strong><?php echo $data[8][1]; ?></strong></h4>
                  </li>
                  <li data-target="#myCarousel" data-slide-to="4" class="list-group-item" style="background-color: silver;">
                     <h4><strong><?php echo $data[9][1]; ?></strong></h4>
                  </li>
                  <li data-target="#myCarousel" data-slide-to="4" class="list-group-item" style="background-color: silver;">
                     <h4><strong><?php echo $data[10][1]; ?></strong></h4>
                  </li>
               </ul>
               <!-- Controls -->
               <div class="carousel-controls">
                  <a class="left carousel-control" href="#myCarousel" data-slide="prev">
                  <span class="glyphicon glyphicon-chevron-left"></span>
                  </a>
                  <a class="right carousel-control" href="#myCarousel" data-slide="next">
                  <span class="glyphicon glyphicon-chevron-right"></span>
                  </a>
               </div>
            </div>
            <!-- End Carousel -->
         </div>
      </div>
      <!-- Carosal End-->
      <div class="container-fluid" style="background-color: ghostwhite;background-image: url('img/elec1.jpg');">
         <div class="row">
            <!-- Division 2-->
            <div class="col-sm-12" style="background-color: black;color: ghostwhite;opacity: 0.9;">
               <h1  style="text-align: center;margin-top: 0.1em;padding-top: 0.5em;">Recent Events</h1>
               <br>
               <br>
               <ul style="margin-bottom: 0em;padding-left: 1.5em;">
                  <li class="hidden" style="list-style-type: none;">
                     <div class="row">
                        <div class="col-sm-8" >
                           <h2><?php echo $data[1][1];?></h2>
                           <h4><?php echo $data[1][2];?></h4>
                           <h4><?php echo $data[1][4];?></h4>
                        </div>
                        <div class="col-sm-4" >
                           <img src="<?php echo $data[1][3];?>" class="img-circle" alt="Cinque Terre" width="170" height="170" style="margin-left: 18%;">
                       </div>
                     </div>
                     <hr style="border-style: dashed;">
                  </li>
                  <li class="hidden" style="list-style-type: none;">
                     <div class="row">
                        <div class="col-sm-8" >
                           <h2><?php echo $data[2][1];?></h2>
                           <h4><?php echo $data[2][2];?></h4>
                           <h4><?php echo $data[2][4];?></h4>
                        </div>
                        <div class="col-sm-4" >
                           <img src="<?php echo $data[2][3];?>" class="img-circle" alt="Cinque Terre" width="200" height="200" style="margin-left: 14%;">
                       </div>
                     </div>
                     <hr style="border-style: dashed;">
                  </li>
                  <li class="hidden" style="list-style-type: none;margin-bottom:0.1em;padding-bottom:0.2em;">
                     <div class="row">
                        <div class="col-sm-8" >
                           <h2><?php echo $data[3][1];?></h2>
                           <h4><?php echo $data[3][2];?></h4>
                           <h4><?php echo $data[3][4];?></h4>
                        </div>
                        <div class="col-sm-4" >
                           <img src="<?php echo $data[3][3];?>" class="img-circle" alt="Cinque Terre" width="220" height="220" style="margin-left: 12%;">
                       </div>
                     </div>
                     <hr style="border-style: dashed;">
                  </li>
               </ul>
               <a href="#" style="text-align: end;">
                  <h2>View all...</h2>
               </a>
            </div>
         </div>
      </div>
      <!-- Division 3-->
      <div style="background-image: url('img/elec3.png');">
         <div class="container-fluid" style="background-color: #FFD96A; opacity:0.9;">
            <div class="row">
               <div class="col-sm-12"  >
                  <h1 style="text-align:center;margin-top: 0.1em;padding-top: 0.5em;">About Us</h1>
               </div>
            </div>
            <div class="row">
               <div class="col-sm-8" >
                  <h1><?php echo $data[12][0];?></h1>
                  <h2><?php echo $data[12][1];?></h2>
                  <div class="row">
                     <div class="col-sm-12" style="padding-left: 20%;">
                        <h4><?php echo $data[12][2];?>  <a href="#">Read More </a></h4>
                     </div>
                  </div>
               </div>
               <div class="col-sm-4" >
                  <img src="https://i1.wp.com/cepd.in/images/gadresir.jpg?resize=250%2C250" class="img-circle" alt="Cinque Terre" width="250" height="250" style="margin-left: 10%;">
              </div>
            </div>
            <div class="centerify" style="color: green;font-size: 4em;font-family: 'Vollkorn', serif;text-align: center;">~~~</div>
            <div class="row">
               <div class="col-sm-4 border" style="text-align: center;padding: 1em;">
                  <a href="#" target="_blank"><img src="http://via.placeholder.com/100X100" style="height: 7em;"></a>
                  <h4 style="color: #00695c;">Name 1 <br> Designation<br>Work discription</h4>
               </div>
               <div class="col-sm-4 border" style="text-align: center;padding: 1em;">
                  <a href="#" target="_blank"><img src="http://via.placeholder.com/100X100" style="height: 7em;"></a>
                  <h4 style="color: #00695c;">Name 2 <br> Designation<br>Work discription</h4>
               </div>
               <div class="col-sm-4" style="text-align: center;padding: 1em;">
                  <a href="#" target="_blank"><img src="http://via.placeholder.com/100X100" style="height: 7em;"></a>
                  <h4 style="color: #00695c;">Name 3 <br> Designation<br>Work discription</h4>
               </div>
            </div>
            <a href="#" style="text-align: end;">
               <h2>Our Team...</h2>
            </a>
         </div>
      </div>
      <!-- ///////////////////////////////////////////////////////////////////////////Main page end ///////////////////////////////////////////////////-->
      <div>
         <a href="#" class="scrollToTop" style="display: none;height: ;height: 4em;padding: 0px;width: 6em;margin: 0px;"><img src="img/top.png" width=50% ></a>
      </div>
      <footer class="footer p-t-1">
         <div class="container">
            <nav class="navbar" style="background:transparent; color: black;">
               <div class="row">
                  <div class="col-xs-8 h6">
                     <h1 style="color: whitesmoke;opacity: 0.6;margin-top: 0px;">CEDT</h1>
                  </div>
                  <div class="col-xs-4">
                     <h2 style="color: whitesmoke;opacity:0.6;margin-top:10px">© 2017 cedtnsit.in</h2>
                  </div>
               </div>
            </nav>
         </div>
      </footer>
   </body>
   <script>
      $(document).ready(function(){
          var $window=$(window);
         function checkWidth(){
              if ($window.width() <= 700) {
                  $('#div1-3').removeClass('col-xs-1').addClass('col-xs-0');
                  $('#div1-3').remove();
                  $('#div1-3').detach();
                  $('#div1-1').removeClass('col-xs-1').addClass('col-xs-2');
                  $('#title').removeClass('decMargin');
                  $('#areaofwork').removeClass('decMargin');
                  $('#relatedlinks').removeClass('decMargin');
                 }
                 else{
                     $('#div1-1_link').remove();
                     $('#title').addClass('decMargin');

                    //$('#mob-progress-bar').remove();
                 };

         }
          checkWidth();
          $(window).resize(checkWidth);
             var sideslider = $('[data-toggle=collapse-side]');
                 var sel = sideslider.attr('data-target');
                 var sel2 = sideslider.attr('data-target-2');
                 sideslider.click(function(event){
                     $(sel).toggleClass('in');
                     $(sel2).toggleClass('out');
                 });
                     var clickEvent = false;
         $('#myCarousel').carousel({
             interval:   4000
         }).on('click', '.list-group li', function() {
                 clickEvent = true;
                 $('.list-group li').removeClass('active');
                 $(this).addClass('active');
         }).on('slid.bs.carousel', function(e) {
             if(!clickEvent) {
                 var count = $('.list-group').children().length -1;
                 var current = $('.list-group li.active');
                 current.removeClass('active').next().addClass('active');
                 var id = parseInt(current.data('slide-to'));
                 if(count == id) {
                     $('.list-group li').first().addClass('active');
                }
             }
             clickEvent = false;
         });
         $("ul li.hidden").each(function(i) {
          $(this).delay(1500 * i).queue(function(nxt) {
          $(this).removeClass('hidden');
          nxt();
       });
          $(window).scroll(function (event) {
         var scroll = $(window).scrollTop();
         console.log(scroll);
         // Do something
           });
          $(window).scroll(function(){
         if ($(this).scrollTop() > 100) {
           $('.scrollToTop').fadeIn();
         } else {
           $('.scrollToTop').fadeOut();
         }
       });

       //Click event to scroll to top
       $('.scrollToTop').click(function(){
         $('html, body').animate({scrollTop : 0},1000);
         return false;
       });
      });
      });
      $(window).load(function() {
         var boxheight = $('#myCarousel .carousel-inner').innerHeight();
         var itemlength = $('#myCarousel .item').length;
         var triggerheight = Math.round(boxheight/itemlength+1);
         $('#myCarousel .list-group-item').outerHeight(triggerheight);
      });
   </script>
</html>


Backend Overview











Backend sections integrates database, google sheets in our case with the main website template. It’s main purpose is to:



  • FETCH DATA



    • In our model, data is fetched from google sheets in CSV format.




  • VERIFY DATA



    • After extracting data, it needs to be checked for removal of malicious code snippets to improve code reliability and security. Thus, avoiding XSS attacks.




  • PUBLISH CONTENT



    • In our template data is published by php’s ‘ECHO’ command embedded in the their respective locations.





CORRESPONDING CODE:


<?php
   $url = "https://docs.google.com/spreadsheets/d/e/2PACX-1vQWvKmJQrt3-DpE5-8b8zu9rXe4DF7DpTq8JMUYQAukLDR_hwAKGpJK9sUMB62CvXXk7N4hIc9MJGya/pub?gid=0&single=true&output=csv";

   $data = get_csv_content($url);

   $is_valid = validate_data($data);


 $data_to_publish = array(0,0,0,0);
   function get_csv_content($spreadsheet_url){
     if(!ini_set('default_socket_timeout', 15))
    echo "<!-- unable to change socket timeout -->";
     if (($handle = fopen($spreadsheet_url, "r")) !== FALSE) {
       while (($data = fgetcsv($handle, 1000, ",")) !== FALSE) {
         $spreadsheet_data[] = $data;
       }
       fclose($handle);
       return $spreadsheet_data;
     }
   }

   function validate_data($data){

   remove_html_tags($data);
     return true;
   }
   function remove_html_tags($data_to_publish){
     $data_to_publish[0]=(int)strip_tags($data[0]);
     $data_to_publish[1]=(int)strip_tags($data[1]);
     $data_to_publish[2]=(int)strip_tags($data[2]);
     $data_to_publish[3]=(int)strip_tags($data[3]);
     return true;
   }
   ?>

Untitled Diagram.png


Experimental Results and Conclusion

working link: here




  1. Website Desktop Version Screenshots




Screenshot from 2017-10-29 16:53:35.png


Screenshot from 2017-10-29 16:54:12.png


2.  Website Mobile Version Screenshots






WhatsApp Image 2017-10-28 at 4.39.01 PM (2).jpeg





  1. Website Performance Test Results


Screenshot-2017-10-29 Pingdom Tools.png










Project is Open Source at : Github

Screenshot-2017-10-29 Pingdom Tools(1).png



References












  5. https://www.w3schools.com/php/default.asp


  6. https://material.io/guidelines/style/color.html#


  7. 81.4.107.225/cedtnsit.in/


Comments

Post a Comment

Popular posts from this blog

Understanding SD, SDIO and MMC Interface

    In this blog post i will present the gist of the paper http://www.kaltech.co.il/pdf/Eureka_sd_wp1.pdf ,  It's crucial for anyone willing to understand how removable devices like sd card work, different protocols/functionalities they support. Secure Digital (SD) memory card today, is one of the most popular non-volatile removable data storage media for consumer applications. It's not intended to remove hard-disk. Hard-disk can still deliver much better speed and memory capacity. SD card is used in applications demanding optimum memory capacity, smaller size, and low end product cost.  The combination of small foot print, lower cost and optimal performance contributed in SD-card's success. What is MultiMedia Card (MMC)? MMC and Sd-card share many common features and have the same physical and electrical specifications. The differences between the two standards are mainly on the software level commands. The similarities allow many hosts to accept both MMC and SD cards on ...
Read more

Software licensing : Introduction and it's types

A lot of things changes when you write your first code for commercially use. Software licensing is one of those. Usually while coding for my own projects, i earlier use to omit this. However, recently i was hit hard by this 'vague' topic of licensing. So, i decided to study in depth about different types of licenses for open source and propriety usage and here's the summary: A software license is a type of contract between the company/person who produces the code and the one who uses it. It defines the terms of usage of that piece of code. Before moving forward i have a curious question: What if, i copy a code without accepting it's license and use it under my own terms?Who's gonna know it, just copy, paste and use!! ? Well after searching the net i came across various case studies, some of which are very interesting... Reference: here Now, coming to the types of available licenses in Open source community:  GNU GPL License GPL license has mai...
Read more

Implementing a MMC/SD/SDIO stack using CAM framework(Part 2)

Hi, In the next part lets look at other files which makes up the SDIO stack within mmccam framework. Please have  a look at previous part for more info: http://81.4.107.225/wordpress/index.php/2018/03/19/implementing-a-mmc-sd-sdio-stack-using-cam-framework/ mmc_sdio.c +void sdio_fill_mmcio_rw_direct(union ccb *ccb, uint8_t f, uint8_t wr, uint32_t adr, uint8_t *data) { + struct ccb_mmcio *mmcio; + + CAM_DEBUG(ccb->ccb_h.path, CAM_DEBUG_TRACE, + ("sdio_fill_mmcio(f=%d, wr=%d, adr=%02x, data=%02x)\n", f, wr, adr, (data == NULL ? 0 : *data))); + mmcio = &ccb->mmcio; + + mmcio->cmd.opcode = SD_IO_RW_DIRECT; + mmcio->cmd.arg = SD_IO_RW_FUNC(f) | SD_IO_RW_ADR(adr); + if (wr) + mmcio->cmd.arg |= SD_IO_RW_WR | SD_IO_RW_RAW | SD_IO_RW_DAT(*data); + mmcio->cmd.flags = MMC_RSP_R5 | MMC_CMD_AC; + mmcio->cmd.data->len = 0; +} sdio_fill_mmcio_rw_direct is basically a wrapper for CMD_52 that's needed ...
Read more
